4 Channels unidirectional / 2 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

  • 4 Ch unidirectionalHD 3G -SDI Fiber Kit

  • 2 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission

  • Fiber optic transmission : 300 m (MM)

  • 10km single mode fiber (SM)

  • HDMI output: 1 x HDMI type A

  • description

  •  4 Channels unidirectional / 2 Channels bilateral hd 3G SDI / HDSDI Over 1 Fiber Optic Transmission Multiplexer, Handles pathological pattern

     4 channel unidirectional 3G SDI / HDSDI Over 1 Fiber Extender
    2 channel bilateral 3G SDI / HDSDI Over 1 Fiber Extender

    4 Channel unidirectional 3G HD-SDI Fiber Optic Extender

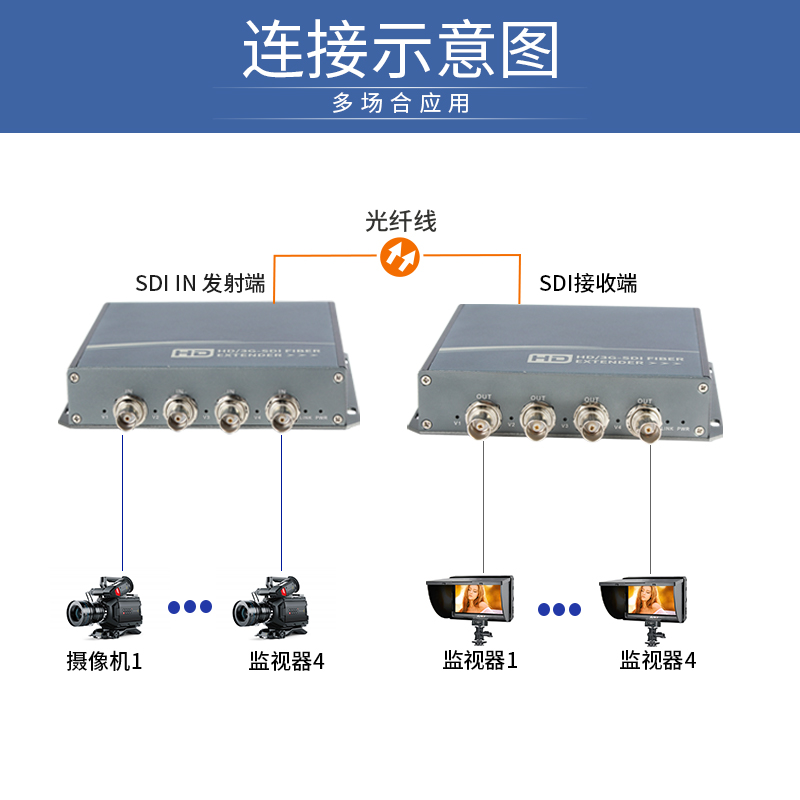

    Extend four 3G HD-SDI or SD-SDI digital video signals over long distances on single mode fiber optic cable

    This kit is a compact power house that will allow any user to transport four channels of 3 Gbps HD-SDI Serial Data Interface over a single strand of fiber. In addition, this Thor Fiber Transmitter and Receiver Kit will send RS485 in reverse for easy control over the kit. This robust unit creates an easy drop in environment for users requiring multiple HD-SDI sources on one Fiber across any application

    No Link Alarms
    The link alarm status on both the transmitter and receiver indicates when the link is not functional.

    Features
    Supports 4 Full HD-SDI @ 3 Gbps or below SDI or ASI digital video
    Carries embedded audio channels as well as SDI ancillary data
    RS-485 serial return path channel for control equipment on the Tx end
    Link alarm indicators on both Tx & Rx indicate a problem with the fiber






    •


      SPECIFICATIONS:

      OperatingTemperatureRange

      -5 to +35℃(+23 to +95℉)

      OperatingHumidityRange

      5 to 90%RH (No Condensation)

      Video Input(Transmitter)





      1xHDMI Type A, 19-pin, female

      Video Output(Receiver)

      1xHDMI Type A, 19-pin, female

      Link(Transmitter/ Receiver)

      1m~60Kmsingle / Multimode single / Duplex fiber optical cable

      Module type required

      SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)

      Video Format

      4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P

      Audio Format

      Support LPCM 7.1, Dolby  True HD, DTS-HD Master Audio .



      HDCP Input

      HDCP 2.2, HDCP 1.4

      HDCP Output

      HDCP 1.4

      Power consumption

      Transmitter: 3watts(Maximum)

      Receive: 3watts(Maximum)

      Dimension (L×W×H)

      Transmitter: 96*100*25mm

      Receive: 96*100*25mm

      Net Weight

      475g(Pair)

     .
